Record the Setup That Must Transfer from Sample to Production

A sample arrives with a short instruction: “Use the same settings for production.” The phrase sounds precise until the next operator tries to follow it. Which thread lot? Which support layer? Was the displayed speed the requested limit or the speed actually used? Did someone change a setting halfway through the sample? A successful piece of embroidery cannot answer those questions by itself.

A setup transfer record connects the physical reference to the conditions that produced it and to the conditions proposed for the next run. Its purpose is practical: another person should be able to identify what stays the same, what changes and what still needs confirmation without reconstructing the job from messages.

This guide develops that record. It does not prescribe universal tension values or claim that copying a control value guarantees an equivalent result. The examples are fictional working situations, and the photographs illustrate record preparation rather than a completed production trial.

Anchor the record to one identifiable sample

Start with the sample identifier and its design revision. Link the actual machine export, not only the artwork filename. Record when and where the sample was made, the equipment used, and the person responsible for its setup. If several specimens were produced, identify which one the recorded conditions describe.

Keep the approval status separate. A setup can be accurately documented even when the specimen has not been accepted. Conversely, an attractive approved specimen may have an incomplete setup history. Writing these as separate fields prevents the word “approved” from concealing missing information.

If a value was not recorded at the time, identify the source of any later reconstruction. A remembered setting belongs in the record as an estimate pending confirmation. Do not convert recollection into a measured fact merely because the form expects a number.

Our guide to managing the editable master and machine export covers the supporting file relationship. The setup record adds the physical and operating conditions that a file alone does not contain.

Record materials as identities, not broad categories

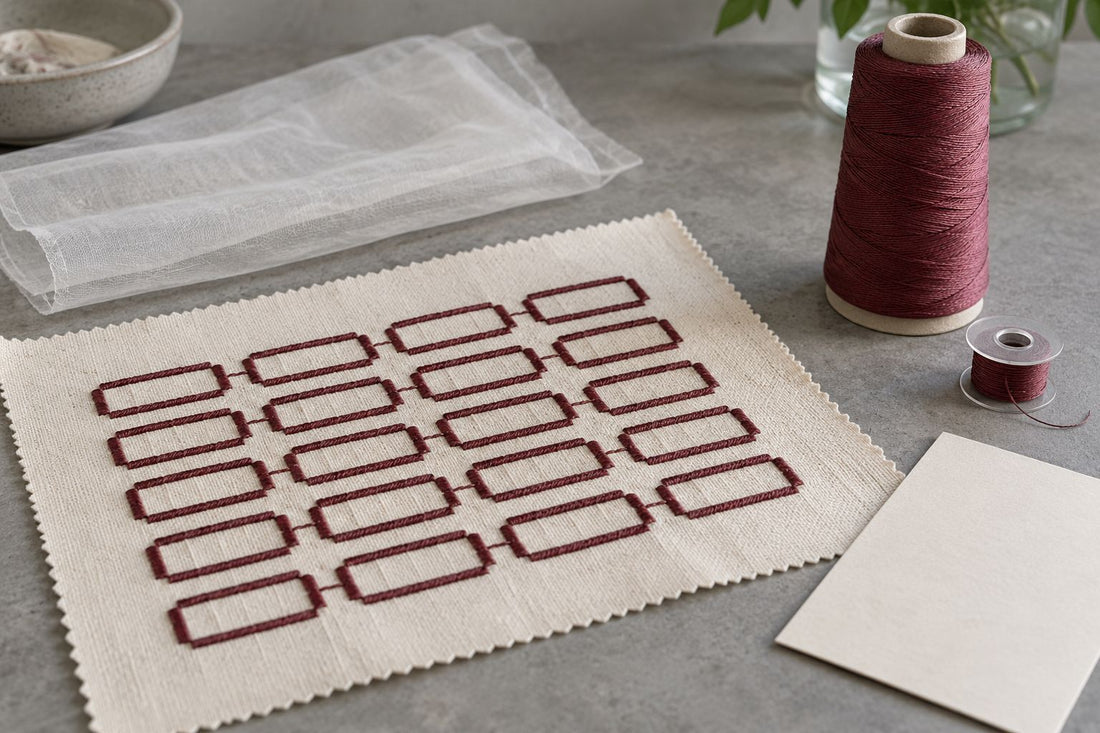

“Polyester thread on cotton” leaves too much room for substitution. Record the available supplier reference, construction or weight designation, colour and lot for the top thread. Identify the bobbin thread and its relevant specification separately. Preserve the actual labels or controlled references used by the workshop.

For the ground, record the article or fabric reference, lot where available, orientation and condition before stitching. Note whether the specimen was a loose panel, an assembled item or a substitute material. A sample cut from one material should not silently become the reference for another with a similar appearance.

Describe the support system used: product identity, number and arrangement of layers, topping, temporary adhesive if applicable, and what was removed before evaluation. Record the absence of support explicitly when that is the actual method. A permanent backing should not be inserted into a transparent-textile workflow simply to fill a checklist row.

Needle information should include the system, size and point designation available from the package or controlled stock record. If condition or a replacement during the trial matters, record that event. The transfer record identifies the setup; selection and adjustment still follow the applicable equipment and material guidance.

Describe how the material was held

Name the frame or hoop and its relevant configuration. Describe the material orientation and the holding method in enough detail to distinguish it from a different arrangement. A close photograph can support the description, but it needs an identified view and should not replace missing specifications.

Record preparation steps that can affect repeatability, such as how the material was aligned, how supporting layers were arranged and when the specimen was released for inspection. Keep the equipment's approved procedure attached or referenced rather than rewriting it from memory.

Official hooping guidance links secure holding to embroidery quality and warns that overstretching can distort the result. The relevant lesson for documentation is to capture the holding method, not merely the name of the hoop. Use instructions appropriate to your own machine and material.

For the foundational selection discussion, see our hooping and stabilizer guide. Here the question is what was actually done on the reference specimen and how that compares with the next setup.

Keep control values in their own machine context

Write down the setting name exactly as the equipment presents it, together with the mode, unit or scale and relevant machine identity. A bare value such as “4” is not a transferable instruction. It could describe a different parameter on another controller, or a value whose effect depends on the selected mode.

Distinguish the proposed limit, any recorded actual behaviour and operator adjustments. If the speed changed for a difficult section, record the location or sequence stage and the reason. If a value was observed only at the end, do not imply that it remained constant throughout the entire specimen.

An official description of an automated thread-feed system shows why mode matters: its standard and automatic modes use settings differently. This is an example of machine-specific interpretation, not a recommendation to copy those settings to another system.

When production uses different equipment, transfer the intended material and quality requirements along with the original evidence. Let the responsible operator establish the appropriate operating conditions through the planned validation. Do not translate a knob position or software number into an assumed universal tension value.

Build a comparison, not a one-sided recipe

Place the reference conditions beside the proposed production conditions. Give every difference a status and a next action. This format makes an unauthorised substitution much easier to notice than two separate lists buried in different folders.

Record group	Reference sample	Production proposal	Required action
File and specimen	Sample ID and exact export revision	Candidate export and job ID	Confirm the intended relationship
Ground and support	Material identities, orientation and support arrangement	Actual stock and planned preparation	Review any substitution or missing identity
Thread and needle	Recorded specifications and relevant lots	Assigned supplies and needle details	Confirm equivalence or plan a comparison
Holding and equipment	Machine, frame, mode and method	Intended production configuration	Identify conditions needing renewed validation
Operating conditions	Named settings, modes and recorded changes	Operator's proposed conditions	Resolve unexplained values before the trial
Evaluation state	Held, released or finished condition	Planned inspection condition	Make the comparison meaningful

Use plain status labels such as confirmed unchanged, intentional change, unconfirmed and not applicable. Add an owner and a due point for open actions. “Same” is acceptable only when it points to an identifiable reference that both people can access.

Capture adjustments as events

A setup sheet prepared before stitching describes the intended starting point. It does not automatically describe the conditions that produced the finished sample. Add a short event log when the operator makes an adjustment or replaces a relevant component during the trial.

Record what changed, when it changed in relation to the stitched region, and which specimen or section reflects the new condition. Preserve the starting entry. Overwriting it can make the finished sample appear to have been produced under one stable setup when it was not.

The log need not become a minute-by-minute diary. Capture events that change how the result should be interpreted, such as a material substitution, a needle replacement after a problem, a revised file or a modified holding arrangement. Link a separate diagnostic record when the investigation needs more detail.

This distinction is especially useful when only part of a sample improved. The reference used for production should identify the conditions associated with the accepted area, including any remaining uncertainty. A photograph of the best section cannot supply that history.

Example: a substitution discovered before handover

Imagine a fictional reference made with one temporary support, while the production store has a different product available. The thread colour and fabric reference match, so a short verbal handover might overlook the support change. The comparison sheet exposes it immediately because the product identities sit in adjacent columns.

Mark the proposed substitution as an intentional change requiring review. Ask the responsible team what comparison is needed and how removal and final appearance will be evaluated. Do not mark the production column “same as sample” because both products are described as removable.

If the alternative is accepted after the appropriate trial, record the new reference and decision. Retain the original setup as the source of the comparison. The record now explains why the production arrangement differs and what evidence supports the change.

Hand over a reproducible starting point

Ask a colleague to read the transfer sheet without seeing the original conversation. Can they locate the correct file, identify the materials, understand the machine-specific settings and name the unresolved differences? Any answer that depends on “the usual one” needs a clearer reference.

Check the physical condition of the specimen too. If evaluation followed support removal or finishing, retain that information with the sample. Our embroidered textile care guide helps frame the separate discussion about the complete material system and its intended treatment.

The finished record should offer a reliable starting point for production validation, with assumptions made visible. Its value is not a promise that every result will match automatically. Its value is that the next operator knows what they are reproducing, what they are changing and what evidence they must still obtain.
